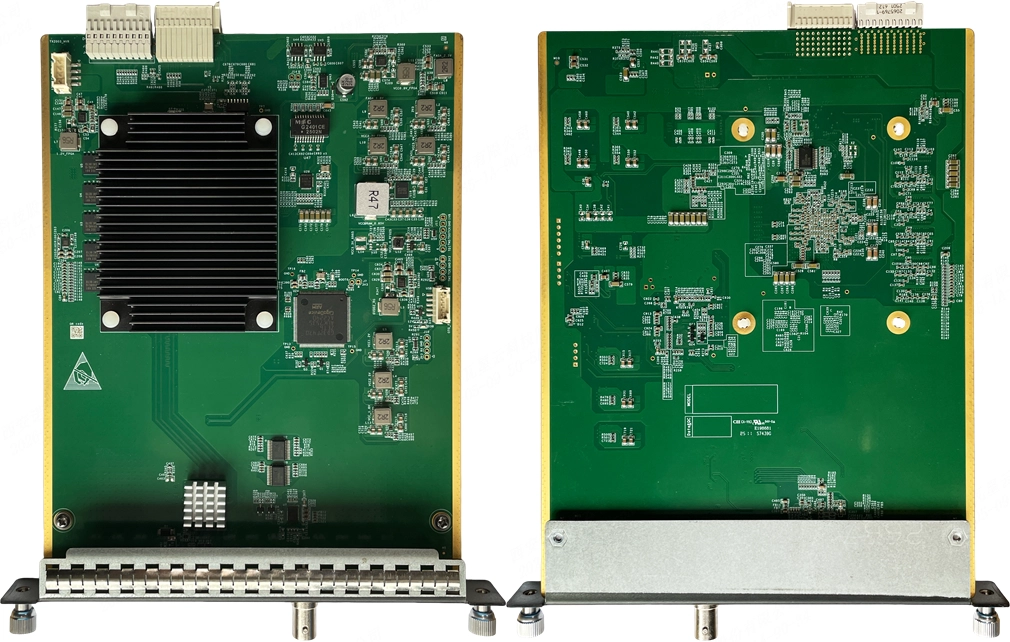

¶ Appearance
¶ Features
Supports the monitoring of up to 40 inputs and outputs.
Supports both fixed and custom layouts (up to 7 custom layouts).
Supports input and output image scaling.
- On the MVR canvas, an image can be scaled to as small as 128×128.
- Images cannot overlap during scaling.
Supports input and output image moving.
- Images can only be moved within the MVR canvas.
- Images must not overlap during movement.
Supported resolutions: 1920×1080@60Hz and 3840×2160@60Hz.
UMD can be turned on or off, with adjustable color and border.
Allows users to monitor the output image by screen in the VMP and by device on the monitor.

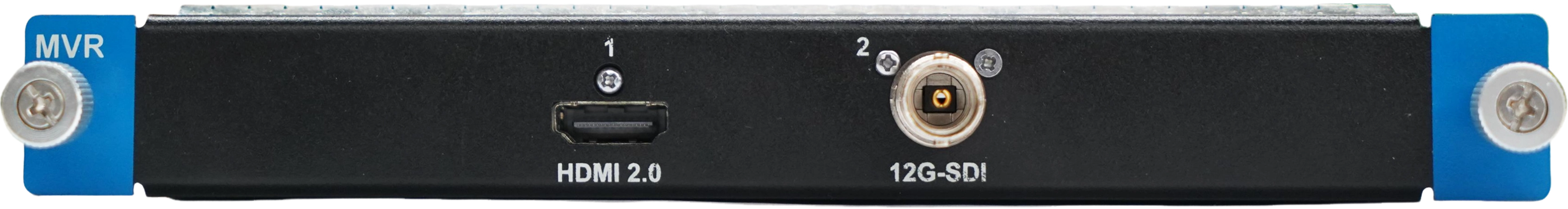

¶ Connector Description
|
Type |
Qty |
Description |
|
|---|---|---|---|
|
HDMI 2.0 |
1 |
Resolution |
|
|
Frame rate |
60 Hz |
||
|
Cables |
|
||
|
12G-SDI |
1 |
Resolution |
|
|
Frame rate |
60 Hz |
||
|
Cables |
|
||
¶ Specifications
|
Electrical Specifications |
Power consumption |
16 W |
|
Operating Environment |
Temperature |
-5°C to +45°C |
|
Humidity |
0% RH to 80% RH, non-condensing |
|
|
Storage Environment |
Temperature |
-30°C to +80°C |
|
Humidity |
0% RH to 90% RH, non-condensing |
|
|
Physical Specifications |
Dimensions |
248.8 mm × 193 mm × 24.7 mm |
|
Net weight |
466.0 g |
|
|
IP Rating |
IP20 (Please prevent the product from water intrusion and do not wet or wash the product). |
|
